Description

Professional and Reliable
• Dual-OS design to ensure high reliability of system running
• ANR technology to enhance the storage reliability when the network is disconnected

HD Input
• H.265/H.265+/H.264/H.264+/MPEG4 video formats
• Connectable to the third-party network cameras
• Up to 8 IP cameras can be connected
• Recording at up to 8 MP resolution
• Supports live view, storage, and playback of the connected camera at up to 8 MP resolution

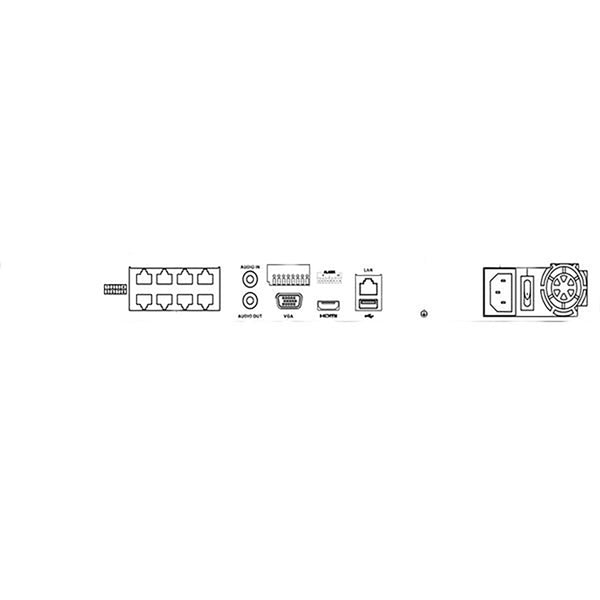

HD Output
• HDMI and VGA independent outputs provided
• HDMI Video output at up to 4K (3840 × 2160) resolution

HD Storage
• Up to 2 SATA interfaces connectable for recording and backup
• Storage space effectively saved by 50% to 70% with the use of H.264+ decoding format

HD Transmission
• 1 self-adaptive 10M/100M/1000 Mbps network interface
• 8/16 independent PoE network interfaces are provided
Various Applications
• Centralized management of IP cameras, including configuration, information import/export, real-time information
display, two-way audio, upgrade, etc.
• Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can
be realized
• VCA detection alarm is supported
• Instant playback for assigned channel during multi-channel display mode
• Smart search for the selected area in the video; and smart playback to improve the playback efficiency
• Supports HDD quota and group modes; different capacity can be assigned to different channels
• Hik-Connect for easy network management
