Sku: DB59BNCSL-25

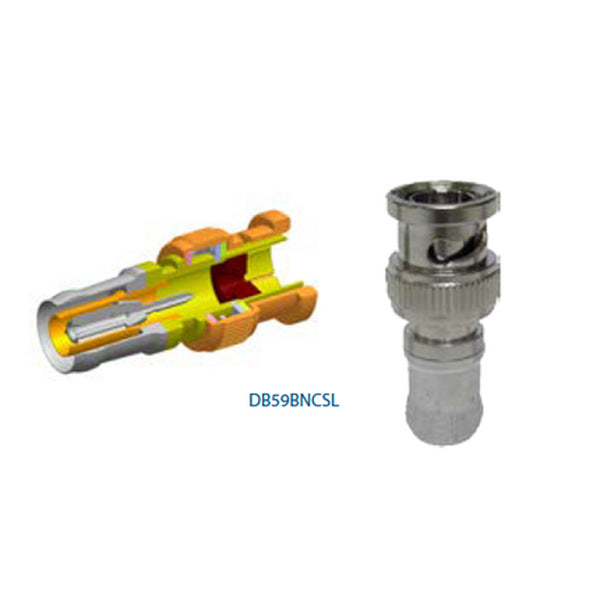

Double Bubble RG59 BNC connector, fits most CCTV Security coaxial cables. Compression design that molds the metal completely around the cable. 25 per Pack Materials Material Nickel plated Brass Gold Plated...
$61.32
Description
- Double Bubble RG59 BNC connector, fits most CCTV Security coaxial cables.
- Compression design that molds the metal completely around the cable.

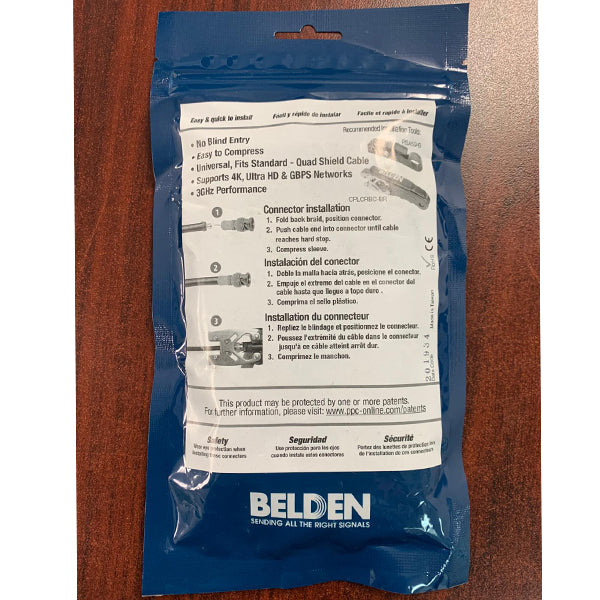

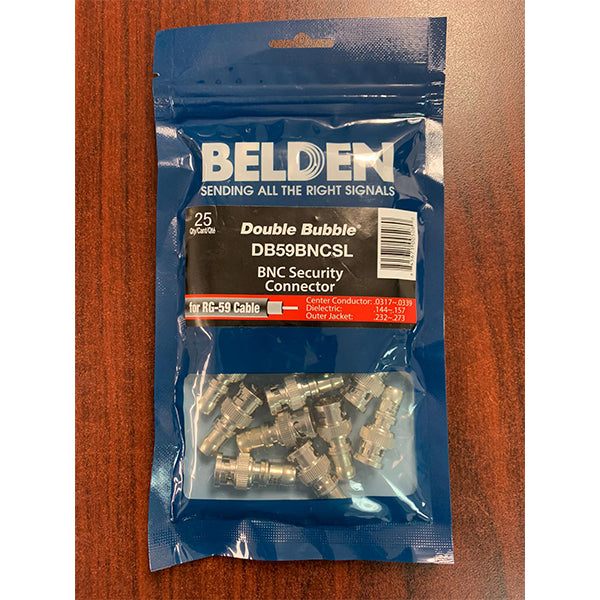

- 25 per Pack
Materials
| Material |
|---|
| Nickel plated Brass |
| Gold Plated |
Electrical Characteristics
Impedance
| Nominal Characteristic Impedance |
|---|
| 75 Ohms |
Return Loss (RL)
| Frequency [MHz] |
|---|
| DC-1 GHz |
| DC-2 GHz |
| DC-3 GHz |
| Electrical Characteristics Notes: | Cable Pullout Force Exceeding 65 in/lbs. |
Mechanical Characteristics
| Footprint/Type: | Coax |
| Connector Interface Type: | BNC |
| Gender: | Male - plug |
| Connector Series Name: | Double Bubble |
| Locking: | No |
| Tool Compatibility: | CPLCRBC-BR (compression), PSA59/6 (strip) |
| Termination Type: | Compression |
| Cable Center Conductor Diameter Limits: | .0317 - .0339 inch |
| Cable Dielectric Diameter Limits: | .137 - .148 inch |
| Cable Outer Jacket Diameter Limits: | .232 - .248 inch |
Standards
| RG Type: | 59/U Type |
| Series Type: | 59/U |
Applicable Environmental and Other Programs
| EU CE Mark: | Yes |
Suitability
| Suitability - Indoor: | Yes |
| Suitability - Outdoor: | Yes |
