Sku: FSNS59BNCSL-25
25-Pack Belden FSNS59BNCU ProSNS BNC Compression Connector Male RG-59 25-Pack Belden FSNS59BNCU ProSNS BNC Compression Connector Male RG-59 Overview This connector is an excellent choice for BNC male termination of...
$58.00
Quantity:
+
-

Description

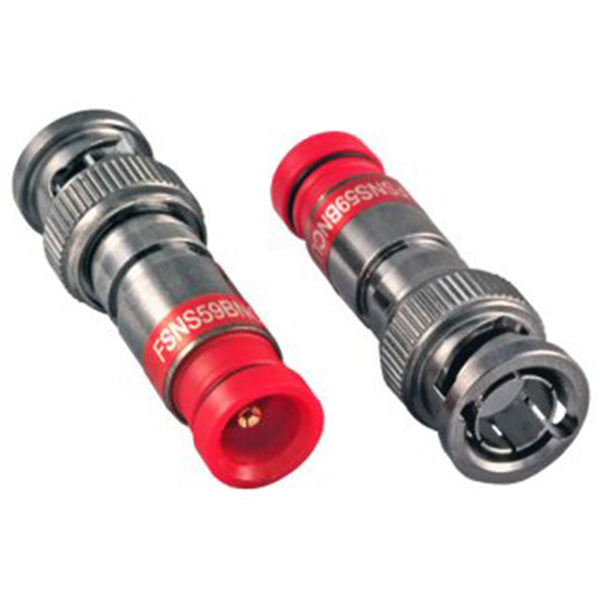

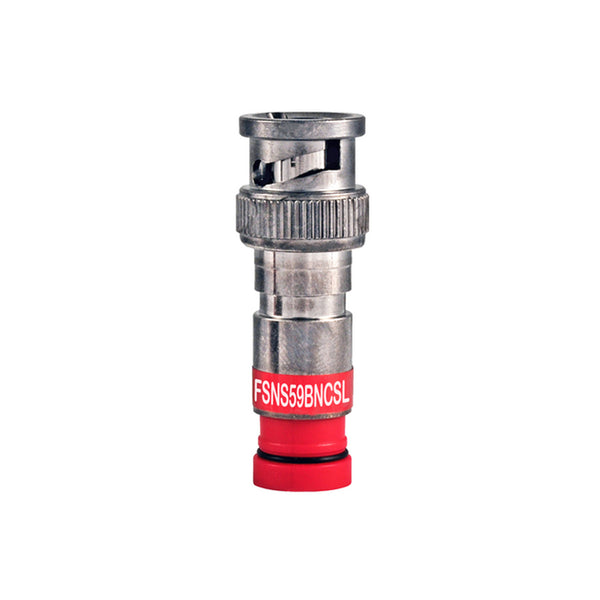

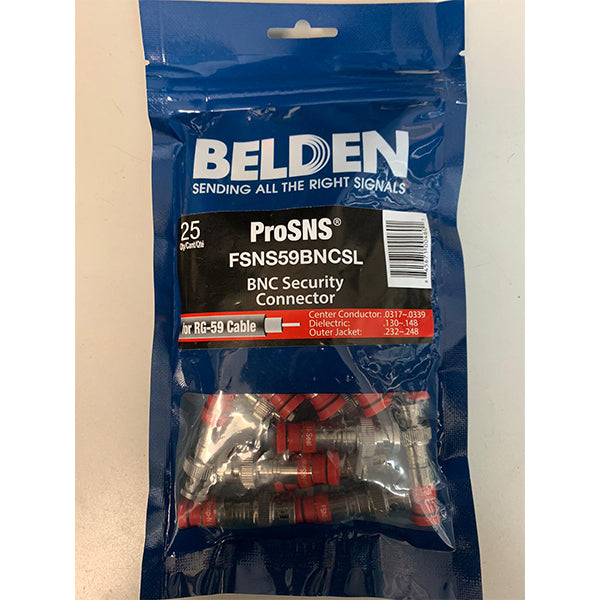

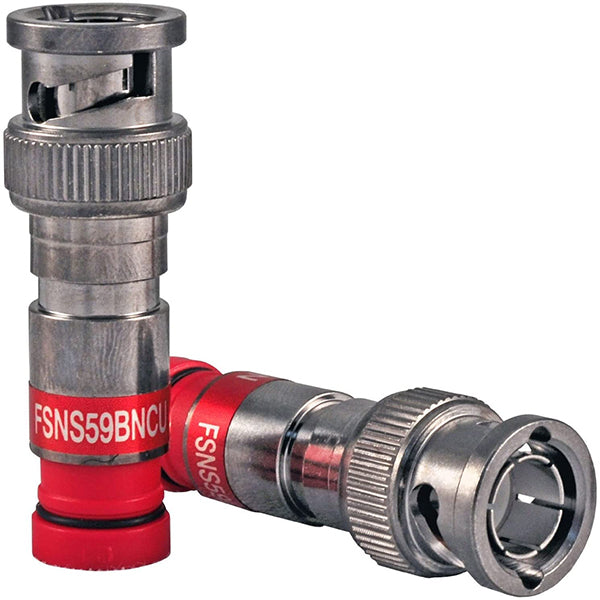

25-Pack Belden FSNS59BNCU ProSNS BNC Compression Connector Male RG-59

25-Pack Belden FSNS59BNCU ProSNS BNC Compression Connector Male RG-59

Overview

This connector is an excellent choice for BNC male termination of RG-59 cable.

When Belden acquired the manufacturers of both Snap-N-Seal and F-Conn, the company didn't rest on its laurels. Engineers took technology from both lines to create the best compression connectors in the world: Snap-N-Seal ProSNS.

By providing true 360° compression, these connectors are have superior RF shielding, rated at an effective -85 dB. All three connector styles, F-type, RCA, and BNC, feature 75 ohm impedance for low signal loss. The floating pin insertion guide, low insertion force, low compression force, and innovative sealing O-ring all help to create a connector that's easy to use, reliable, and can be installed using nearly any standard compression tool.

Specifications: • Base metal: Brass • Contact plating: Nickel-tin alloy • Sold per: 25 pack • Entry hole 6 mm • Termination style: Compression • Dimensions: 0.56" x 1.69" (uncompressed).

Highlights

  • BNC male compression connector fits industry standard RG-59 coaxial cable
  • Integrated O-ring locks out moisture
  • Floating-pin insertion guide for easier installation
